Product Details:
|
| Material: | Carbon Steel | Color: | White |
|---|---|---|---|
| Model Number: | 1JT9 | Surface Treatment:: | Zinc-plated White |
| Product Name: | JIC Male Elbow Adapters | Brand Name: | DUOLI |
| High Light: | jic bulkhead fitting,jic 37 flare fittings,bspt male hydraulic flared adapters |
||

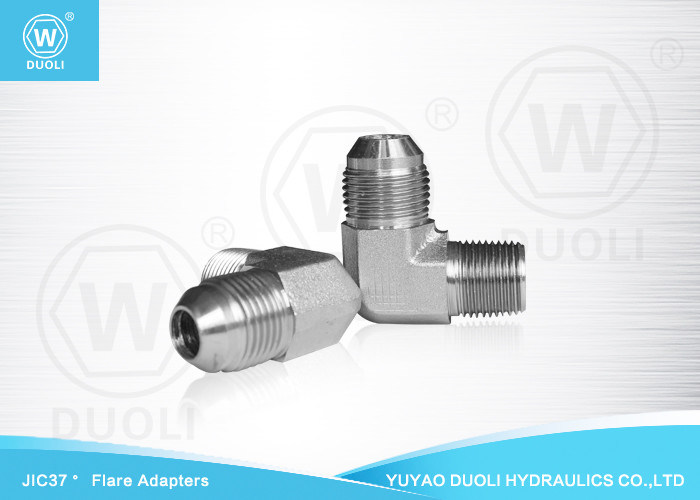

Elbow JIC Male37° Cone and BSPT Male hydraulic Flared Fittings by carbon steel
The meaning of the first letter is as follows, and the rest of the letter has the same meaning as the
second or the third letter of the transition connector
A external thread / external thread
B external thread / internal / external thread
C external thread / external thread
D internal thread / internal thread / internal thread
E internal thread / external thread / internal thread
F internal thread / internal / external thread
G fixed internal thread / fixed internal thread / fixed internal thread
H fixed internal thread / fixed internal / external thread
J fixed internal / external / internal thread
K external / internal / external thread
L external / internal / external thread
M internal thread / fixed internal thread / internal thread
Product Description
| Thread | WINNER PART NO. | ||
| PART NO. | 1 | 2 | |
| A5GA-07-02 | 7/16"-20 | R1/8"-28 | 1JT9-04-02SP |
| A5GA-07-04 | 7/16"-20 | R1/4"-19 | 1JT9-04SP |
| A5GA-07-06 | 7/16"-20 | R3/8"-19 | 1JT9-04-06SP |
| A5GA-08-02 | 1/2"-20 | R1/8"-28 | 1JT9-05-02SP |
| A5GA-08-04 | 1/2"-20 | R1/4"-19 | 1JT9-05-04SP |
| A5GA-08-06 | 1/2"-20 | R3/8"-19 | 1JT9-05-06SP |
| A5GA-09-02 | 9/16"-18 | R1/8"-28 | 1JT9-06-02SP |
| A5GA-09-04 | 9/16"-18 | R1/4"-19 | 1JT9-06-04SP |
| A5GA-09-06 | 9/16"-18 | R3/8"-19 | 1JT9-06SP |
| A5GA-09-08 | 9/16"-18 | R1/2"-14 | 1JT9-06-08SP |
| A5GA-12-06 | 3/4"-16 | R3/8"-19 | 1JT9-08-06SP |
| A5GA-12-08 | 3/4"-16 | R1/2"-14 | 1JT9-08SP |
| A5GA-12-12 | 3/4"-16 | R3/4"-14 | 1JT9-08-12SP |
| A5GA-14-06 | 7/8"-14 | R3/8"-19 | 1JT9-10-06SP |
| A5GA-14-08 | 7/8"-14 | R1/2"-14 | 1JT9-10-08SP |
| A5GA-14-12 | 7/8"-14 | R3/4"-14 | 1JT9-10-12SP |
| A5GA-17-08 | 1.1/16"-12 | R1/2"-14 | 1JT9-12-08SP |
| A5GA-17-12 | 1.1/16"-12 | R3/4"-14 | 1JT9-12SP |
| A5GA-17-16 | 1.1/16"-12 | R1"-11 | 1JT9-12-16SP |
| A5GA-21-12 | 1.5/16"-12 | R3/4"-14 | 1JT9-16-12SP |
| A5GA-21-16 | 1.5/16"-12 | R1"-11 | 1JT9-16SP |
| A5GA-21-20 | 1.5/16"-12 | R1.1/4"-11 | 1JT9-16-20SP |
| A5GA-26-16 | 1.5/8"-12 | R1"-11 | 1JT9-20-16SP |
| A5GA-26-20 | 1.5/8"-12 | R1.1/4"-11 | 1JT9-20SP |
| A5GA-26-24 | 1.5/8"-12 | R1.1/2"-11 | 1JT9-20-24SP |
| A5GA-30-20 | 1.7/8"-12 | R1.1/4"-11 | 1JT9-24-20SP |
| A5GA-30-24 | 1.7/8"-12 | R1.1/2"-11 | 1JT9-24SP |
| A5GA-30-32 | 1.7/8"-12 | R2"-11 | 1JT9-24-32SP |
| A5GA-40-24 | 2.1/2"-12 | R1.1/2"-11 | 1JT9-32-24SP |
| A5GA-40-32 | 2.1/2"-12 | R2"-11 | 1JT9-32SP |
| Name | Hydraulic JIC male elbow adapters |
| Brand Name | DUOLI |
| Material | Carbon Steel |
| Thread type | JIC MALE |
| Technical | CNC Machines |
| Size | From 7/16"*20 to 2.1/2" *12 |
| Surface Treatment | White Zinc-Plated |
| MOQ | 500 pieces |
| Sample |
Sample will be sent to you within 7 days |
| Sample ship | By express (DHL,FEDEX,UPS,TNT,EMS etc ) |
| Product Attributes | High pressure, high temperature |
| Trading Method | EXW, FOB, CIF |
| Payment | T/T |
Thread eccentricity tolerance:
2A of the external thread and the thread of the modified 2B various elements, the concentricity of the joint
does not exceed the following limit
Our main products:
Hose Assembly, Swaged Hose Fittings, Metric Thread O-ring Face Seal Fittings, Metric Thread Bite Type Tube Fittings, Metric Thread 74 degree Cone Flared Tube Fittings, BSP Thread 60 degree Cone Fittings, BSPT Thread Fittings, NPT Thread Fittings, JIC 74 degree Cone Flared Tube Fittings, ORFS Fittings, Japanese Metric Thread 60 degree Cone Fittings, Japanese BSP Thread 60 degree Cone Fittings, NPSM Fittings, ISO 6162 Flange Fittings and SAE Staple-lok Fittings.
Standard: JIC JIS UNF BSP DIN and so on.
