Product Details:
|
| Material: | Carbon Steel | Color: | White/Yellow |
|---|---|---|---|
| Place Of Origin: | Zhejiang,China(Mainland) | Connection: | Female |
| Shape: | Ferrule | Technology: | Forged |
| Brand Name: | Duoli | Part No.: | 00200 |
| High Light: | hydraulic ferrule fittings,hydraulic hose connectors fittings |
||

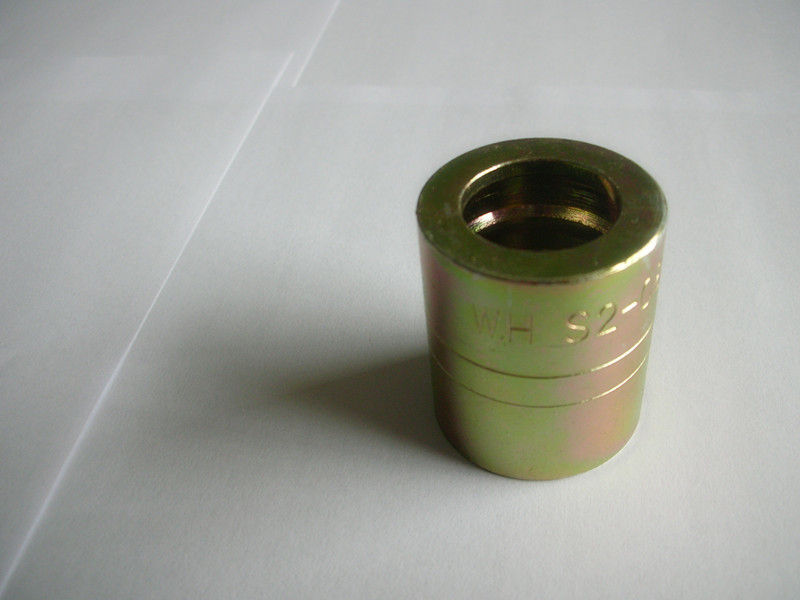

Yellow Carbon Steel Hydraulic Hose Ferrule for SAE 2SN HOSE
Press production method of pipe joint
The utility model relates to the technical field of a butt joint, in particular for a docking pipeline (such as oil, gas, liquid) hose and equipment in the system (such as pump, valve) pressing type pipe joint hard tube.
The background of the traditional technology of pressing type pipe joint comprises a joint body through the through hole along the axial direction, one end of the connector body for threaded pipe butt end, the other end is the butt end of the outer circumferential surface of the hose, the butt end of the thread pipe is provided with external thread, nut threaded pipe joint body near the butt end is provided with a hexagonal and joint body as a whole, the joint body has radial concave circular groove, nut is located between the groove and the threaded pipe butt end. People use the buckling type pipe joint butt hose and threaded pipe, first with the wrench nut, the screw in the screw thread tube butt end and threaded pipe, and threaded pipe threaded pipe and a sealing ring is provided between the butt end of the hose, hose is sheathed in the butt end, and then use the card the hoop hose is pressed on the groove ring joint of the body, so, to complete the installation of the buckling type pipe joint. The existing technology of pressing type pipe joint has the following defects because the nut is a hexagonal nut, in actual use, with six angle wrench tighten the nut, often easy to slip; moreover, the sealing effect and threaded pipe butt end threaded pipe after docking is often not ideal.
Product Description
| Thread | WINNER PART NO. | ||
| PART NO. | D | L | |
| S2-04 | 21 | 30 | 00200-04 |
| S2-06 | 24 | 32 | 00200-06 |
| S2-08 | 29 | 34 | 00200-08 |
| S2-10 | 32 | 37 | 00200-10 |
| S2-12 | 36 | 43 | 00200-12 |
| S2-16 | 44 | 50 | 00200-16 |
| S2-20 | 51 | 59 | 00200-20 |
| S2-24 | 57 | 74 | 00200-24 |
| S2-32 | 75 | 78 | 00200-32 |
OEM Packing
We can make customer's brand packing and we will protect your brand,will not show others' your packing.
About package
1. After order is placed,we will confirm with customer all the printing details including box design,shippment mark,pallet mark ect
2. All insturction will be follow during the order is produced
3. Before shippment,we will take photoes for customer for approval
About Shippment
Shipments for small sample order are via DHL,TNT,UPS, or Fedex etc ,normal order is Via Sea from ningbo port or shanghai port.If you need other port,you should tell us before ordering as the cost is different.
Advantage
1. Industry and trade integration enterprise, you can get the most competition price from us.
2. Flexible payment, about payment, we can discuss according to your needs.
3. OEM/ODM are welcome, if you need OEM/ODM our correction tape, please contact us for more detail, we will do our best to meet your needs.
Our QC procedure:
As we had more than 5 professional and technical personal, they ensure 100% products checking.
1. Material checking: strictly control of material using, meet international requested standards;
2. semi-finished products inspection: product inspection before 100% finished ;
3. production line test: with work team or data engineer who will inspect matchines and lines at fixed
period.
4. finished prodcuct inspection: quality and property test before products are plated zinc, packed and loaded.
