Product Details:
|
Material: | Carbon Steel | Color: | White/YELLOW |
---|---|---|---|
Technics: | CNC | Type: | Fitting |
Connection: | 24 DEGREE TAPPER | Brand Name: | DUOLI |
High Light: | hydraulic pipe connections,steel flare fittings,carbon steel bite type tube adapter |

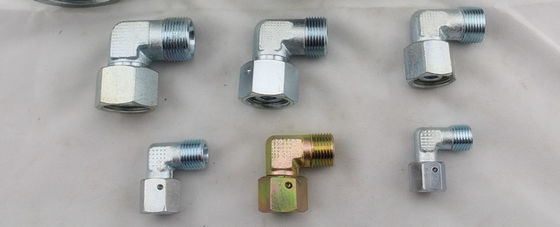

Metric Female / Bsp Male Tube Adapter with Captive Seal
Our main products: Hose Assembly, Swaged Hose Fittings, Metric Thread O-ring Face Seal Fittings, Metric Thread Bite Type Tube Fittings, Metric Thread 74 degree Cone Flared Tube Fittings, BSP Thread 60 degree Cone Fittings, BSPT Thread Fittings, NPT Thread Fittings, JIC 74 degree Cone Flared Tube Fittings, ORFS Fittings, Japanese Metric Thread 60 degree Cone Fittings, Japanese BSP Thread 60 degree Cone Fittings, NPSM Fittings, ISO 6162 Flange Fittings and SAE Staple-lok Fittings.
Standard: JIC JIS UNF BSP DIN and so on.
Thread | PRICE | WINNER PART NO. | ||
PART NO. | 1 | 2 | ||
EW 06L | M12×1.5 | 7.80 | 2C9-12 | |
EW 08L | M14×1.5 | 8.60 | 2C9-14 | |
EW 10L | M16×1.5 | 9.30 | 2C9-16 | |
EW 12L | M18×1.5 | 11.50 | 2C9-18 | |
EW 15L | M22×1.5 | 14.30 | 2C9-22 | |
EW 18L | M26×1.5 | 18.50 | 2C9-26 | |
EW 22L | M30×2.0 | 21.50 | 2C9-30 | |
EW 28L | M36×2.0 | 28.50 | 2C9-36 | |
EW 35L | M45×2.0 | 57.00 | 2C9-45 | |
EW 42L | M52×2.0 | 86.00 | 2C9-52 | |
EW 06S | M14×1.5 | 8.60 | 2D9-14 | |
EW 08S | M16×1.5 | 9.30 | 2D9-16 | |
EW 10S | M18×1.5 | 11.40 | 2D9-18 | |
EW 12S | M20×1.5 | 12.80 | 2D9-20 | |
EW 14S | M22×1.5 | 14.30 | 2D9-22 | |
EW 16S | M24×1.5 | 17.20 | 2D9-24 | |
EW 20S | M30×2.0 | 23.00 | 2D9-30 | |
EW 25S | M36×2.0 | 35.70 | 2D9-36 | |
EW 30S | M42×2.0 | 64.00 | 2D9-42 | |
EW 38S | M52×2.0 | 92.00 | 2D9-52 |
1.Swaged Metric Fittings | Mertic Flat Seal Fittings |
Metric Multiseal Fittings | |
Metric 60°Cone Seal Fittings | |
Metric 74°Cone Seal Fittings | |
Metric 24°Cone O-RING Seal L..T Fittings | |
Metric 24°Cone O-RING Seal H.T.Fittings | |
Metric Standpipe Straight Fittings | |
JIS Metric 60°Cone Seal Fitting | |
2. Swaged British Fittings | BSP O-RING Seal Fittings |
BSP Flat Seal Fittings | |
BSP Multiseal Fittings | |
BSP 60°Cone Seal Fittings | |
BSPT Fittings | |
JIS BSP 60°Cone Seal Fittings | |
3. Swaged American Fittings | SAE O-RING Seal Fittings |
ORFS Flat Seal Fittings | |
NPSM 60°Cone Seal Fittings | |
JIC 74°Cone Seal Fittings | |
NPT Fittings SAE Flange L.T. Fittiings | |
SAE Flange H.T.Fittings | |
4. Staplelok Fittings | Banjo Double connection |
interlock Hose Fittings | |
5. Ferrule | FERRULE for SAE100R1AT/ EN 853 1SN HOSE |
FERRULE for SAE100R1A EN 853 1ST HOSE | |
FERRULE for SAE100R2AT/DIN20022 2SN HOSE | |
FERRULE for SAE100R2A/EN 853 2SN HOSE | |
FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC | |
FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE | |
FERRULE for 4SH,R12/32 HOSE | |
6. Metric Adapters | Metric Thread O-RING Face Seal Adapters |
Metric Thread Bite Type Tube Adapters | |
JIS Metric Thread 60°Cone Adapters | |
Metric Thread 74°Cone Flared Tube Adapters | |
7. British Adapters | BSP Thread 60°Cone Adapters |
JIS BSP Thread 60°Cone Adapters | |
BSPT Thread Adapters | |
8. American Adapters | ORFS Adapters JIC 74°Cone Flared Tube Adapters |
NPT Thread Adapters |
