Carbon Steel 45° Elbow JIC Flare Fittings , Bulkhead JIC 37 Degree Hydraulic Fittings

Description
Material: Carbon Steel Color: White
Model Number: 2J4 Surface Treatment:: Zinc-plated White
Product Name: JIC Male Adapters Brand Name: DUOLI
High Light:

jic 37 degree flare fittings

,

jic bulkhead fitting

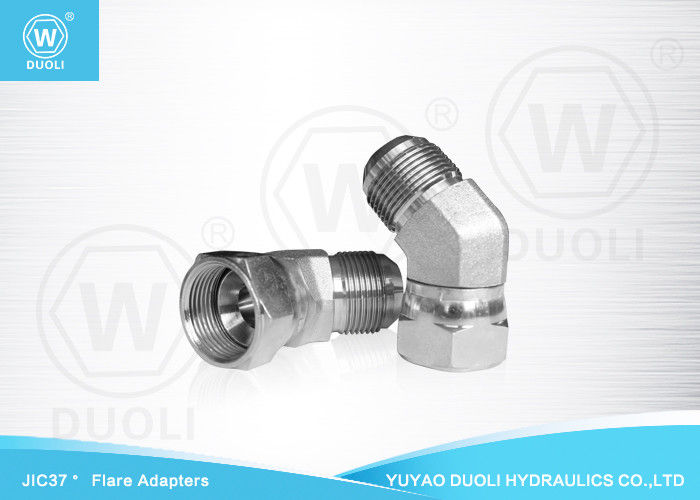

45° Elbow JIC Male37° Cone and JIC Male37° Seat Flared Fittings by carbon steel



Tolerance:



In the manufacturing process, due to the influence of processing or measurement, the actual size of the finished product always has a certain error.

In order to ensure the interchangeability of parts, the actual size of the parts must be controlled within the allowable range. The allowable dimensional variation is called dimensional tolerance.

Cases:

1, the basic size design, given size: 30mm

2, the limit size allows two dimensional variations of the limit value:

Maximum limit size =30+0.01=30.01mm

Minimum limit size =30-0.01=29.99mm

3, the algebraic value of the limit deviation, the minimum size, and the basic dimension. That is, the algebraic difference between the maximum limit size and the minimum limit size and the basic dimension are the upper and lower deviations, collectively the limit deviations. The upper and lower deviations of the hole are expressed in capitals ES and EI, respectively:

Upper deviation ES=30.01-30=+0.01

Lower deviation EI=29.99-30=-0.01

4, dimensional tolerances allow the amount of variation in size, i.e., the maximum limit size, the minimum limit size, and the algebraic difference between the upper and lower deviations.

Dimensional tolerance is an absolute value without symbols.

Tolerance: 30.01-29.99=0.02

Or I0.01- (-0.01) =0.02





1.Swaged Metric Fittings Mertic Flat Seal Fittings
Metric Multiseal Fittings
Metric 60°Cone Seal Fittings
Metric 74°Cone Seal Fittings
Metric 24°Cone O-RING Seal L..T Fittings
Metric 24°Cone O-RING Seal H.T.Fittings
Metric Standpipe Straight Fittings
JIS Metric 60°Cone Seal Fitting
2. Swaged British Fittings BSP O-RING Seal Fittings
BSP Flat Seal Fittings
BSP Multiseal Fittings
BSP 60°Cone Seal Fittings
BSPT Fittings
JIS BSP 60°Cone Seal Fittings
3. Swaged American Fittings SAE O-RING Seal Fittings
ORFS Flat Seal Fittings
NPSM 60°Cone Seal Fittings
JIC 74°Cone Seal Fittings
NPT Fittings SAE Flange L.T. Fittiings
SAE Flange H.T.Fittings
4. Staplelok Fittings Banjo Double connection
interlock Hose Fittings
5. Ferrule FERRULE for SAE100R1AT/ EN 853 1SN HOSE
FERRULE for SAE100R1A EN 853 1ST HOSE
FERRULE for SAE100R2AT/DIN20022 2SN HOSE
FERRULE for SAE100R2A/EN 853 2SN HOSE
FERRULE for SAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC
FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE
FERRULE for 4SH,R12/32 HOSE
6. Metric Adapters Metric Thread O-RING Face Seal Adapters
Metric Thread Bite Type Tube Adapters
JIS Metric Thread 60°Cone Adapters
Metric Thread 74°Cone Flared Tube Adapters
7. British Adapters BSP Thread 60°Cone Adapters
JIS BSP Thread 60°Cone Adapters
BSPT Thread Adapters
8. American Adapters ORFS Adapters JIC 74°Cone Flared Tube Adapters
NPT Thread Adapters



Product Description

Carbon Steel 45° Elbow JIC Flare Fittings , Bulkhead JIC 37 Degree Hydraulic Fittings 0



               Thread WINNER PART NO.
PART NO. 1 2
A6GJ-07-07 7/16"-20 7/16"-20 2J4-04
A6GJ-08-08 1/2"-20 1/2"-20 2J4-05
A6GJ-09-09 9/16"-18 9/16"-18 2J4-06
A6GJ-12-12 3/4"-16 3/4"-16 2J4-08
A6GJ-14-14 7/8"-14 7/8"-14 2J4-10
A6GJ-17-17 1.1/16"-12 1.1/16"-12 2J4-12
A6GJ-21-21 1.5/16"-12 1.5/16"-12 2J4-16
A6GJ-26-26 1.5/8"-12 1.5/8"-12 2J4-20
A6GJ-30-30 1.7/8"-12 1.7/8"-12 2J4-24
